Product Name Stainless Steel Ball Valve CF8 Item No125
Test Pressure Hyraulic | 103 Kg/cm2g (1500Psig)

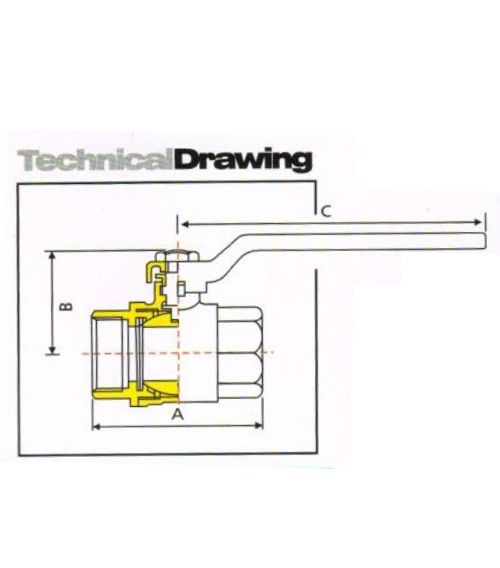

Dimensions
| Inches | mm | A | B | C |
|---|---|---|---|---|
| 1/2 | 15 | 62 | 50 | 90 |
| 3/4 | 20 | 70 | 62 | 102 |
| 1 | 25 | 82 | 69 | 120 |
Materials
| Description | Material | Specification |
|---|---|---|
| Body & Bonnet | Stainless Steel | CF:8 |
| Ball | Stainless Steel Rod | SS:202 |
| Stem | Stainless Steel | AISI:304 |
| Nut | Stainless Steel | AISI:304 |
| Lever | Carbon Steel | IS:2062 |
| Ring & Gasket | PTFE | - |
Salient Features :
- Screwed female ends to IS:554/ BS:21 / ISO:7
- Full Bore design, Quarter turn, Lever operated
- Amazing Visual appearance
Best For :
-outline-andi-nur-abdillah.png)
Water
Air
Steam
Oil
Gases
