Product Name Cast Iron Ball Valve Screwed
Item No 1002
Test Pressure Hydraulic | 25 Kg/cm2g (350Psig)

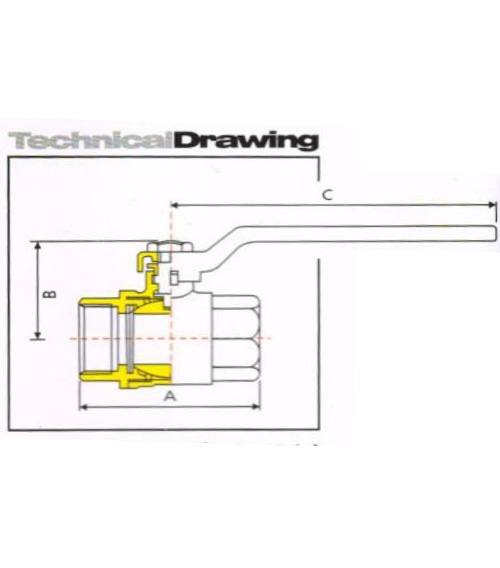

Dimensions
| Inches | mm | A | B | C |
|---|---|---|---|---|
| 1/4 | 8 | 47 | 37 | 90 |
| 3/8 | 10 | 47 | 37 | 90 |
| 1/2 | 15 | 72 | 40 | 90 |
| 3/4 | 20 | 84 | 43 | 120 |
| 1 | 25 | 96 | 51 | 120 |
| 1¼ | 32 | 76 | 65 | 154 |
| 1½ | 40 | 87 | 72 | 154 |
| 2 | 50 | 104 | 80 | 170 |
| 2½ | 65 | 139 | 102 | 250 |
| 3 | 80 | 160 | 125 | 250 |
| 4 | 100 | 180 | 140 | 350 |
Materials
| Description | Material | Specification |
|---|---|---|
| Stem | Stainless Steel | IS: 6605 / AISI:410 |
| Nut | Mild Steel | - |
| Washer | Rubber | - |
| Handle | Mild Steel | - |
| Gland Nut | Mild Steel | - |
| Body | Cast Iron | IS:210 FG 200 |
| Gland Packing | PTFE | - |
| Ball | Stainless Steel | AISI:410 |
Salient Features :
- Screwed Female ends to BSP
- Quarter turn, Lever operated
- Full Bore design
- Glass filled Teflon setting & Gland Packing
- Provided with Stainless Steel & Stainless Steel (AISI:410) Spindle / Brass
- Superior in Quality & Performance
Best For :
-outline-andi-nur-abdillah.png)
Water
Air
Steam
Oil
Gases
