Product Name Bronze Vertical Check Valve
Item No 108
Test Pressure Hyraulic | Body : 1.5 Mpa | Seat : 1.0 Mpa

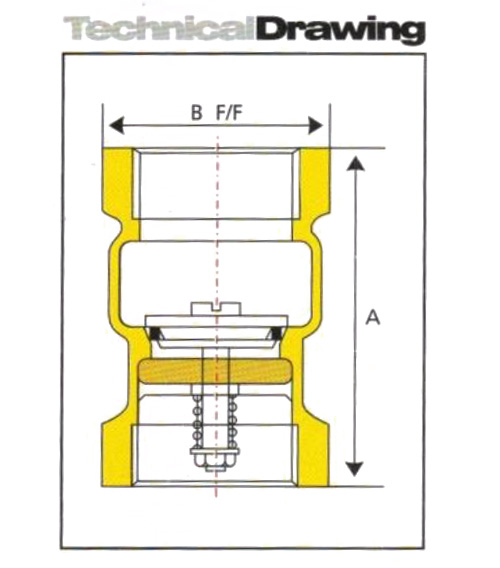

Dimensions
| Inches | mm | A | B |
|---|---|---|---|
| 1/2 | 15 | 65 | 26 |
| 3/4 | 20 | 70 | 32 |
| 1 | 25 | 75 | 39 |
| 1¼ | 32 | 85 | 49 |
| 1½ | 40 | 95 | 55 |
| 2 | 50 | 110 | 68 |
| 2½ | 65 | 130 | 85 |
| 3 | 80 | 145 | 98 |
| 4 | 100 | 190 | 127 |
Materials
| Description | Material | Specification |
|---|---|---|
| Body | Bronze | IS: 318 LTB2 |
| Disc | Bronze | IS: 318 LTB2 |
| Nut | Brass | IS: 6912 FLB |
| Split Pin | Phosphorous Bronze | - |
| Spring | Phosphorous Bronze | - |
Salient Features :
- Screwed Female ends to BSP IS:554 / ISO:7
- Single Piece Design
- Meant for vertical lines only
- Strictly conforming to IS:778 Class-1
- Compelling visual appeal
- Permits flow in one direction and closes automatically if the flow reverses.
Best For :
-outline-andi-nur-abdillah.png)
Water
Air
Steam
Oil
Gases
