Product Name Bronze Gate Valve Hex.Type Item No<103
Test Pressure Hyraulic | 20Kg/cm2g (300Psig)

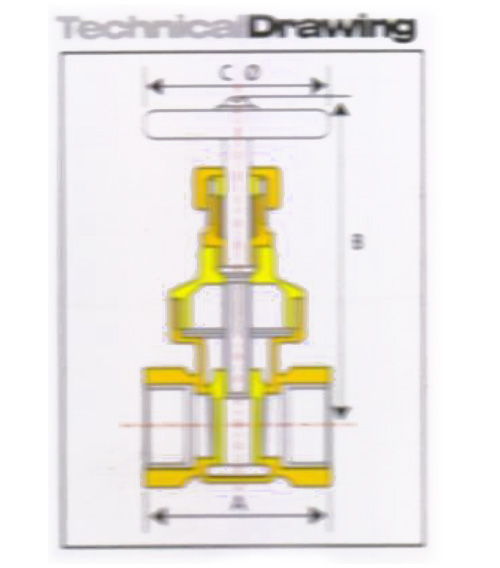

Dimensions
| Inches | A | B | C |
|---|---|---|---|
| 1/2 | 42 | 95 | 51 |
| 3/4 | 48 | 112 | 61 |
| 1 | 50 | 115 | 66 |
| 1¼ | 57 | 137 | 72 |
| 1½ | 62 | 160 | 76 |
| 2 | 65 | 166 | 90 |
Materials
| Description | Material | Specification |
|---|---|---|
| Body & Stem | Bronze | IS:318 LTB2 |
| Bonnet Stuffing Box | Bronze | IS:318 LTB2 |
| Gland | Forged Brass | IS:6912 FLB |
| Gland Nut | Bronze | IS:318 LTB2 |
| Gland Nut | Forged Brass | IS:6912 FLB |
| Handwheel | Cast Iron / Mild Steel | IS:210 Gr. Fg-200 |
| Screw / Bolt & Washer | Mild Steel | - |
| Gland Packing | Asbestos / Teflon | IS:4687 / PTFE |
Salient Features :
- Screwed Female ends to IS:554 / BS:21 / ISO:7
- Forged in Bonnet, Wedge & Gland Nut is it's unique feature
- Body Designed for convenient fitting wher space is the factor
- High Quality Teflon (PTFE) Gland Packing
- Screwed in Bonnet, Non-Rising Spindle provided with unbreakable sheet metal hand wheel for convenient operation
Best For :
-outline-andi-nur-abdillah.png)
Water
Air
Steam
Oil
Gases
