Product Name Bronze Compact Pressure Reducing Valve - Screwed Item No114

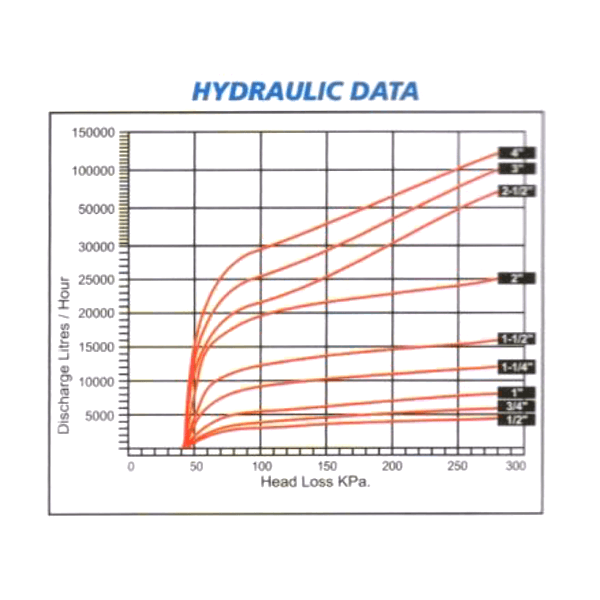

Test Pressure Hyraulic | 25 Kg/cm2g (350Psig)
Dimensions
| Inches | mm | A | B | C | D |
|---|---|---|---|---|---|
| 1/2 | 15 | 62 | 1/2" | 68 | 44 |
| 3/4 | 20 | 62 | 3/4" | 68 | 44 |
| 1 | 25 | 86 | 1" | 93 | 61 |
| 1¼ | 32 | 91 | 1¼" | 99 | 65 |
| 1½ | 40 | 91 | 1½" | 99 | 65 |
| 2 | 50 | 91 | 2" | 101 | 71 |
| 2½ | 65 | 135 | 2½" | 130 | 87 |
| 3 | 80 | 160 | 3" | 150 | 101 |
| 4 | 100 | 160 | 4" | 162 | 115 |
Materials
| Description | Material | Specification |
|---|---|---|
| Body | Bronze | IS:318 LTB2 |
| Bonnet & Chamber | Brass | IS:6912 |
| Piston, Disc Holder & Cap | Bronze | IS:318 LTB2 |
| Adjustable Ring | Brass | IS:6912 |
| Disc & O-Ring | Nitrile Rubber | Natural |
| Plug | Brass | IS:6912 |
Salient Features :
- Screwed Female ends to IS:554 / BS:21 / ISO:7
- Easy to Install
- No Diaphragm, Pistol Type, provided with High Quality Nitrile Rubber O Rings

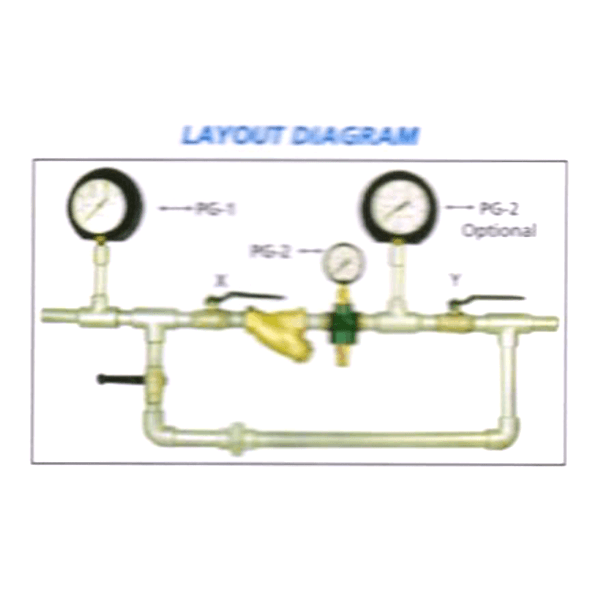

- With a provision of installation of a pressure gauge is provided
Best For :
-outline-andi-nur-abdillah.png)
Water
Air
Steam
Oil
Gases
