Product Name Brass Swing Check Valve
Item No 116
Test Pressure Hyraulic | Body : 1.5 Mpa | Seat : 1.0 Mpa

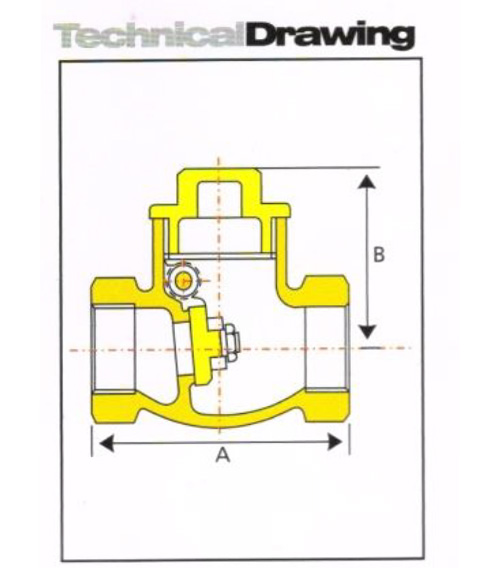

Dimensions
| Inches | mm | A | B |
|---|---|---|---|
| 1/2 | 15 | 58 | 45 |
| 3/4 | 20 | 70 | 52 |
| 1 | 25 | 80 | 59 |
| 1¼ | 32 | 95 | 70 | \
| 1½ | 40 | 105 | 85 |
| 2 | 50 | 116 | 90 |
Materials
| Description | Material | Specification |
|---|---|---|
| Body | Brass | IS:6912 FLB |
| Bonnet | Brass | IS:6912 FLB |
| Hinge Pin | Brass | IS:6912 FLB |
| Ball | Brass | IS:6912 FLB |
| Disc | Brass | IS:6912 FLB |
Salient Features :
- Screwed to Female threads to IS:554 / ISO:7
- Good Looking
- Smooth & leak proof performance
Best For :
-outline-andi-nur-abdillah.png)
Water
Air
Steam
Oil
Gases
